- General Information
- Manufacturer
- ASRock, Inc
- Manufacturer Website Address
- http://www.asrock.com
- Brand Name
- Phantom Gaming
- Product Type
- Gaming Desktop Motherboard

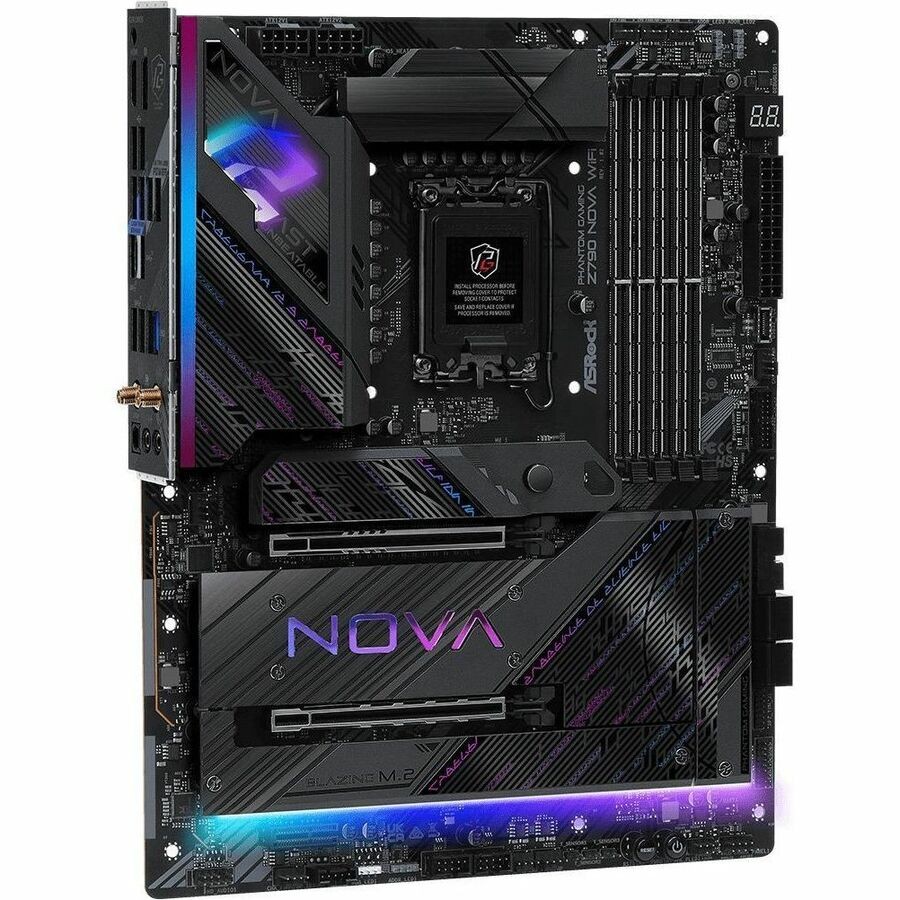

Z790 Nova WiFi
Nova is the most significant energy discharge ever witnessed by mankind, it's super-powerful which represents the performance our motherboard can deliver.
FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!
Optimized VRM Design 20K Capacitor | Long Lasting 20K Cap
20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability.
VRM Design | 20+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
PCB Design | 8L & 2OZ PCB Design
The 8 Layer PCB and 2 ounce copper inner layers provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Power Connector Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.king.
CPU Indicator
Tune your computer quickly with ASRock CPU Indicator. It rates your CPU by assigning points based on its performance and capabilities, helping users optimize overclocking settings for enhanced performance.
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z790
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported
- Core
- Multi GPU Supported
- CrossFire
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 256 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 8000 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.4
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax/be
- I/O Expansions
- PCI Express Standard
- PCI Express 3.0
- PCI Express 4.0
- PCI Express 5.0
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x1 Slots
- 1
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 8
- Number of USB 2.0 Ports
- 2
- Number of USB 3.2 Gen 1 Type-A Ports
- 3
- Number of USB 3.2 Gen 2 Type-A Ports
- 4
- S/PDIF
- Yes
- VGA
- Yes
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Onboard Interfaces
- Number of M.2 Interfaces
- 6
- Total Number of Onboard USB Ports
- 9
- Number of Onboard USB 2.0 Ports
- 4
- Physical Characteristics
- Form Factor
- ATX
- Width
- 12"
- Depth
- 9.6"
- Miscellaneous
- Package Contents
- Z790 Nova Wifi Gaming Desktop Motherboard
- 1 x User Manual
- 4 x SATA Data Cables
- 1 x Graphics Card Holder
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 1 x ARGB Splitter Cable
- 3 x Thermistor Cables
- 5 x Screws for M.2 Sockets
- 5 x Standoffs for M.2 Sockets
- Brand Compatibility
- Intel
- Energy Efficiency Compliance
- Energy-related Products Directive Ready (ErP Ready)
- Energy-using Products Directive Ready (EuP Ready)
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
